7 UniFi PoE switches
Six 48-port and one 24-port Pro Max PoE switches power the access points and Yealink phones. A separate aggregation switch connects the floors.
INNERDIGITAL · TECHNOLOGY PROPOSAL
The Onyx
Art Hotel & Gallery
Network, cabling, phones, TVs and managed IT for a 40-room hotel, gallery and ground-floor tenants.
Updated September 20, 2026 · Budget proposal
01 / SCOPE
What’s included
40 guest rooms, 50 Yealink phones, 40 wired TVs, 57 Wi-Fi access points and 217 cable drops.
In each guest room
- One phone outlet
- One direct LAN outlet for the 65-inch Smart TV
- One guest laptop outlet
- One separate cable to a UniFi Wi-Fi access point
Four cable runs per room keep all three requested outlets available.
217 Cat6 drops · $54,250
40 rooms × 3 outlets120
Ground-floor data and phone outlets40
Separate Wi-Fi connections57
Total at $250 per drop217
Includes cable, jacks, plates, patch panels, patch cords, standard supports, installation, labeling and certification. The 10 business phones use outlets within the ground-floor allowance.
ROOM COUNT TO CONFIRM
Pricing assumes 20 rooms on each hotel floor. The revised second-floor plan supports 20 rooms; a revised third-floor plan is still needed. Confirm room numbering, outlet locations, rack spaces and the service address before installation.
Original and revised floor plans
The revised plan has 19 labels and one unlabeled room enclosure at door 230A. Confirm the current drawing issue and resolve the 319 / 325 S. Gay St. address difference.
02 / NETWORK
UniFi network and Wi-Fi
Separate networks protect hotel operations, guests, phones, TVs, the gallery and each tenant.
57 Wi-Fi access points
40 U7 In-Wall units in guest rooms and 17 U7 Pro units in shared areas. Wired connections provide the backbone for Wi-Fi.
4 racks with UPS
One main 42U rack and three 12U floor cabinets, each with UniFi battery backup. Three fiber trunks provide 10Gb connections between racks.
| Location | Wi-Fi APs | Network cabinet / switches |
|---|---|---|
| Ground floor | 8 | Main rack near rooms 110 / 112 · 2 × 48-port PoE |
| Basement | 4 | Floor cabinet near Storage 17 · 1 × 24-port PoE |
| Hotel floor 2 | 22 | Floor cabinet near rooms 207 / 209 · 2 × 48-port PoE |
| Hotel floor 3 | 22 | Floor cabinet near rooms 307 / 309 · 2 × 48-port PoE |
| Mechanical penthouse | 1 | Connected to floor 3, subject to cable-length check |
Includes configuration of 10 network segments: management, hotel, guests, voice, TVs, gallery and four tenants. Guests receive Internet-only access; business and tenant networks remain separated.
Plan for 2 Gbps primary Internet and a separate 500 Mbps backup service. Carrier charges are additional. Wi-Fi quantities and placement will be checked by an on-site survey.
Equipment models and quantities
| Quantity | Product / model | Placement |
|---|---|---|
| 1 | Dream Machine Pro Max ↗ UDM-Pro-Max | Ground-floor MDF |
| 1 | Switch Aggregation ↗ USW-Aggregation | Ground-floor MDF |
| 6 | Pro Max 48 PoE ↗ USW-Pro-Max-48-PoE | 2 ground; 2 floor 2; 2 floor 3 |
| 1 | Pro Max 24 PoE ↗ USW-Pro-Max-24-PoE | Basement IDF |
| 40 | U7 In-Wall ↗ U7-IW | One per guest room |
| 17 | U7 Pro ↗ U7-Pro | B1:4; ground:8;F2:2;F3:2;penthouse:1 |
| 4 | UPS 2U US ↗ UPS-2U-US | MDF +3 IDFs |
| 1 | Power Distribution Pro ↗ USP-PDU-Pro | Ground-floor MDF; UPS output distribution |
| 1 | 42U Cabinet 800mm Perforated ↗ UACC-Rack-42U-800-P | Ground-floor MDF |
| 3 | 12U Cabinet 600mm Perforated ↗ UACC-Rack-12U-Wall-600-P | Basement /Floor2 /Floor3 |
| 5 | 10G Single-Mode Optic 2-Pack ↗ UACC-OM-SM-10G-D-2 | Five MDF-to-IDF duplex10G links |
| 3 | 10G DAC 1m ↗ UACC-DAC-SFP10-1M | Gateway +2 ground switches to aggregation |
Includes 10 fiber modules and 3 local DAC cables. Copper accessories are included in drop pricing; passive fiber components are included in the fiber installation price.
Capacity, security and testing details
- Switch capacity: 312 access ports; 222 planned connections leave 90 spare. New outlets still need cabling.
- Wi-Fi planning: 1,000 connected devices / 500 active users. Survey and load testing will confirm coverage; these are design targets.
- Acceptance: target −67 dBm coverage and 25 dB signal-to-noise ratio in agreed areas; test roaming, isolation and Internet failover. Certify all copper links and test fiber loss.
- Cabling: maximum 90 m permanent copper link / 100 m total channel. Use wired AP backhaul; wireless mesh only where the survey supports it.
- Power: 4,720 W total switch PoE capacity; approximately 1,377 W planned endpoint load. Verify each rack’s load and UPS runtime. Each UPS is limited to 1,000 W and provides short outage protection.
- Limits: one gateway and one fully occupied aggregation switch; hardware redundancy and long-duration backup power are additional. Confirm carrier handoff compatibility. Outdoor and elevator coverage are excluded.
VLANs: management 10; hotel 20; guests 30; voice 40; TVs 50; gallery 60; tenants 70/80/90/100. Access between segments is blocked unless approved. Guest-device isolation and restricted IT access are included.
03 / PHONES & TVs
Room technology
50 Yealink phones
40 guest-room phones and 10 for the front desk, office and gallery. Proposed model: SIP-T44U.
50 phones × $250$12,500
Phone System Install$10,000
One-time total$22,500
Installation includes phone setup, extensions, call routing, voicemail, testing and staff training.
Phone service requirements
Confirm the compatible phone platform and carrier before purchase. Test direct 911 dialing, front-desk notification and room/floor location with the provider.
PMS integration, wake-up calls, call accounting, emergency-location licenses, porting and extra numbers require a separate provider quote. Emergency-calling compliance requires provider validation.
40 × 65-inch Smart TVs
One TV per room, connected directly by LAN. Brand and model will be approved before ordering.
40 TVs × $859$34,360
40 mounts × $64.99$2,599.60
40 mounting installs × $350$14,000
One-time total$50,959.60
Installation includes mounting, LAN connection, basic setup and testing. The builder supplies wall support and electrical outlets.
TV selection and guest accounts
Confirm mount compatibility and commercial-use warranty before ordering. This allowance covers consumer Smart TVs; hotel management features and automated guest-account resets are not included.
Use a guest-account reset process at checkout. Streaming subscriptions, content licenses, coax distribution and secure room casting are additional; guest casting stays disabled until separately configured.
04 / MONTHLY SERVICES

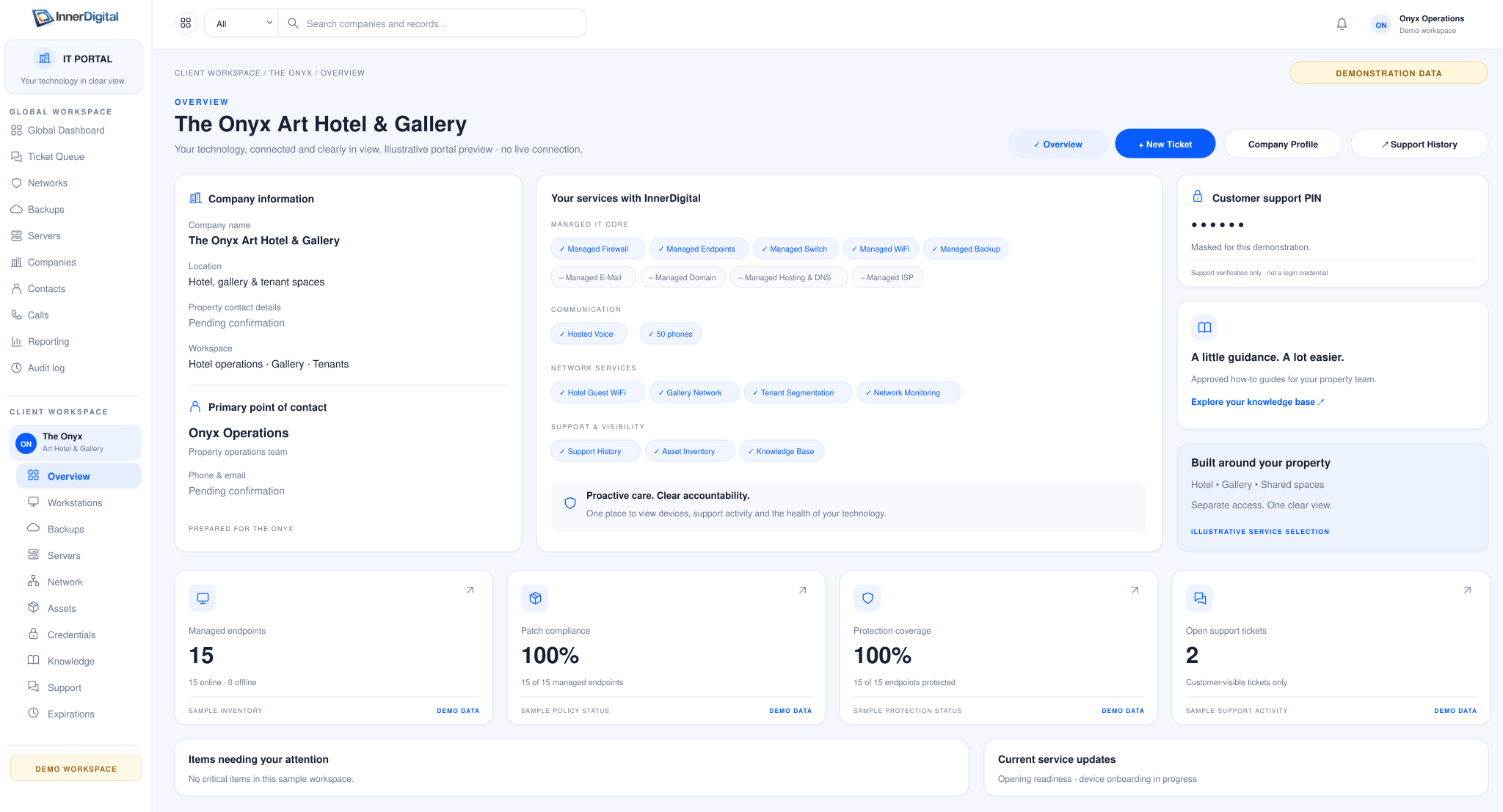

Managed IT and voice
MANAGED IT
$1,750 / month
Network + up to 15 business computers
VOICE SERVICES
$900 / month
40 rooms × $15 + 10 extensions × $30
TOTAL
$2,650 / month
$31,800 annually · Internet and taxes extra
Network monitoring
Alerts, firmware updates, configuration backups, Wi-Fi management and carrier coordination.
Computer protection
NinjaOne management, software patching and SentinelOne protection for up to 15 computers.
Backup
Included computers share 1 TB of backup storage, with alert review and quarterly sample restores.
Staff support
Remote help, ticket history, asset records, IT documentation and quarterly service reviews.
Support: Monday–Friday, 8 a.m.–5 p.m. Eastern, excluding holidays. After-hours escalation for property-wide network or phone outages.
Support terms and exclusions
Proposed response targets: 60 minutes for critical outages and four business hours for standard issues. These are acknowledgment targets; the signed service agreement governs.
Guest devices, tenant computers, onsite repairs, major projects, replacement hardware, PMS/POS support, Microsoft 365, server/SaaS backup and excess storage are separately scoped. Unlimited 24/7 guest support is excluded. Confirm the final computer and backup inventory before contracting.
05 / COSTS
Project cost breakdown
Hardware and installation are shown separately. Quantities remain subject to the final site survey and approved plans.
| Scope | Basis | Investment |
|---|---|---|
| UniFi network, racks & UPS | Gateway, 7 PoE switches + aggregation, 57 APs, racks and UPS | $31,500.30 |
| Copper cabling | 217 drops × $250, materials + labor | $54,250.00 |
| Fiber backbone | 3 fiber trunks; materials, installation and testing | $4,500.00 |
| Network installation & configuration | Racks, VLANs, security, configuration and handover | $13,000.00 |
| Wi-Fi design & validation | Survey, coverage tuning and testing | $2,500.00 |
| Phone hardware | 50 × $250 | $12,500.00 |
| Phone System Install | 50 phones, system setup, testing and training | $10,000.00 |
| 65-inch TVs and mounts | 40 × $859 TVs + 40 × $64.99 mounts | $36,959.60 |
| TV mounting & installation | 40 × $350 | $14,000.00 |
USD. Tax, freight, Internet and excluded construction work are additional. The 10% reserve is an owner contingency, not an automatic fee.
06 / DELIVERY
Installation and handover
InnerDigital provides
- Site survey and final equipment/outlet schedule.
- Copper and fiber installation, labeling and test reports.
- Network configuration, phone setup and TV installation.
- Coverage and isolation checks, provider-coordinated calling tests, port maps, secure credentials and staff training.
Owner / builder provides
- Final plans, room numbers and approved equipment locations.
- Secure, cooled rack spaces, electrical power and TV blocking.
- Conduit, sleeves, coring, firestopping and wall/ceiling repairs.
- Internet service and required software/content licenses. Hazardous-material work, unusual lifts and after-hours construction access are excluded.
Next step: a coordinated site walk to confirm the final layout and installation scope.
Proposed billing: 40% at equipment release, 40% after rough-in and 20% at acceptance. Monthly services begin at handover. Timing depends on construction readiness and equipment availability.
Budget proposal subject to a signed agreement and final survey. This is not a sealed architectural or engineering design or construction authorization.
